Automatic IBC Filling Machine with High Accuracy and Customizable Options for Versatile Applications

Automatic IBC Filling Machine with High Accuracy and Customizable Options for Versatile Applications
Automatic IBC Filling Machine with High Accuracy and Customizable Options for Versatile Applications Automatic IBC Filling Machine with High Accuracy and Customizable Options for Versatile Applications Automatic IBC Filling Machine with High Accuracy and Customizable Options for Versatile Applications Automatic IBC Filling Machine with High Accuracy and Customizable Options for Versatile Applications Automatic IBC Filling Machine with High Accuracy and Customizable Options for Versatile Applications Automatic IBC Filling Machine with High Accuracy and Customizable Options for Versatile Applications Automatic IBC Filling Machine with High Accuracy and Customizable Options for Versatile Applications Automatic IBC Filling Machine with High Accuracy and Customizable Options for Versatile Applications Automatic IBC Filling Machine with High Accuracy and Customizable Options for Versatile Applications
Informação Básica
Lugar de origem: Xangai, China
Marca: Daesum
Quantidade de ordem mínima: 1
Preço: $28,000-30,000
Melhor preço contacto
Capacidade de máquinas: 8HP Precisão de preenchimento: ± 0,2%Fs
Peso: 1500 kg Fornecimento de tensão: 415/220, 1/3 fase, 50/60Hz
Velocidade de saída: 50-60 bateria/hr Tamanho do tambor: 50L a 1000L
Modo de enchimento: Acima ou sob nível de líquido com preenchimento rápido e drible Forma do recipiente: Tanque Round IBC, balde, tambor ou outros
Materiais para tambores: Recipiente de plástico e metal Componentes principais: Motor, PLC, engrenagem, rolamento, caixa de engrenagens, motor
Sistema de controle: Alemanha Siemens/Japão Omron PLC Material de enchimento: Óleo, líquido
Material de Construção: Acabamento pintado em aço inoxidável ou zinco Célula de carga: Plataforma de pesagem para serviços pesados ​​montada individualmente
Material do gabinete: Aço inoxidável 304
Destacar:

High Accuracy IBC Filling Machine

,

Customizable Pallet Filling Machine

,

1 Year Warranty Automatic Filling Machine

Automatic IBC Filling Machine

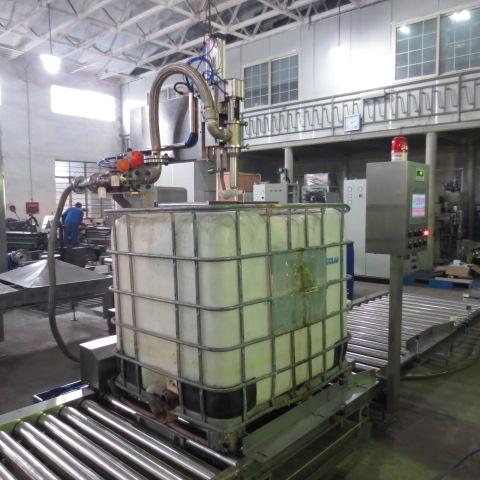

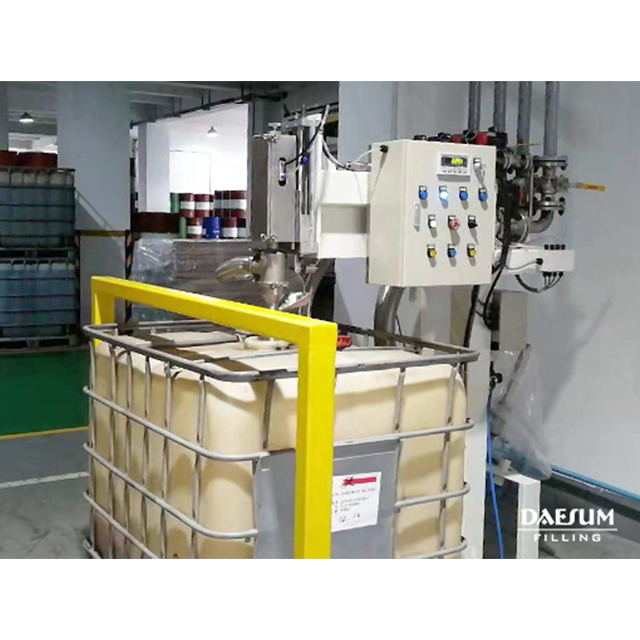

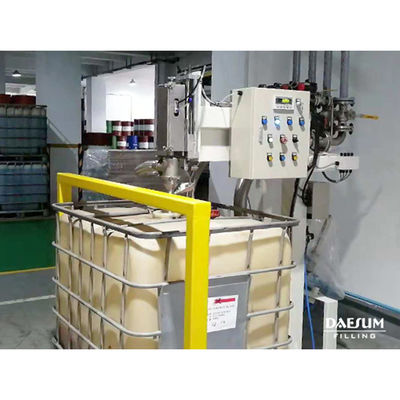

This filling machine is suitable for containers from 50L to 1000L and can be manually adjusted via touch screen.
Product Application
Designed for free-flowing to viscous products, including chunky products. Fill volumes range from 50L to 1000L at high flow rates with accuracies up to ±0.2%, depending on drum size and product type.
Technical Specifications
Feature Specification
Product Compatibility Free flow to high viscosity
Output Speed 50-60 drums/hour (dependent on drum size and product type)
Container Shape Round IBC Tank, pail, drum or others
Drum Material Plastic & Metal container
Drum Size 50L to 1000L
Voltage Supply 415/220, 1/3Phase, 50/60Hz
Filling Accuracy Class X (0.5) (0.2%)
Filling Mode Above or under liquid level with fast & dribble fill
Custom configurations are available according to customer requirements.
Type of Build
  • Stainless Steel or Zinc Painted Finish
  • Performs debunging, filling, bunging, clinching, stenciling, and palletizing in a compact area with minimal operator requirements
Filling System Features
  • No product spillage onto clean drums with hood cover under nozzle
  • Manual/Net/Gross filling with auto two-stage fast & dribble fill
  • Quick-release, fast interchangeable lance for easy maintenance (SS316 straight pipe)
  • Top/Low Fill with auto-lowering lance assembly and hood cover
  • METTLER TOLEDO brand weight scaler with digital display
  • Heavy-duty weighting platform with single load cell and overload protection
  • Powered or gravity-fed pallet conveyor system (2x2 configuration)
  • Spring-assisted nozzle closure during power failure
  • Stainless steel 304 enclosure with front viewing Perspex cover
  • Safety interlock for nozzle closure before lance withdrawal
  • IP55 class control cabinet for weighing indicator and pneumatic components
Control System Features
  • Germany Siemens/Japan Omron PLC Control System
  • Manual/Net/Gross filling with auto two-stage fast/dribble fill
Optional Items
  • Digital Touch Screen Panel with System Integration
  • PLC to DCS synchronization and simulation
  • Hazardous Environment Ex-proof system
  • Manual Drum Crimper Tool with ground support
  • Nozzle diving system
Automatic IBC Filling Machine with High Accuracy and Customizable Options for Versatile Applications 0 Automatic IBC Filling Machine with High Accuracy and Customizable Options for Versatile Applications 1 Automatic IBC Filling Machine with High Accuracy and Customizable Options for Versatile Applications 2 Automatic IBC Filling Machine with High Accuracy and Customizable Options for Versatile Applications 3 Automatic IBC Filling Machine with High Accuracy and Customizable Options for Versatile Applications 4
